The STYLE 350 lathe is ideal for machining single pieces and small series. A heavy cast iron frame gives the machine a very solid base. The ergonomic design combines optimal accessibility and ease of use with sufficient safety. This machine offers you all the flexibility you want for turning the most diverse products.
Haben Sie Fragen oder wünschen Sie weitere Informationen zu dieser CNC-Drehmaschine?
Gerne unterstützen wir Sie!
Alex Meinema
Alex Bekema

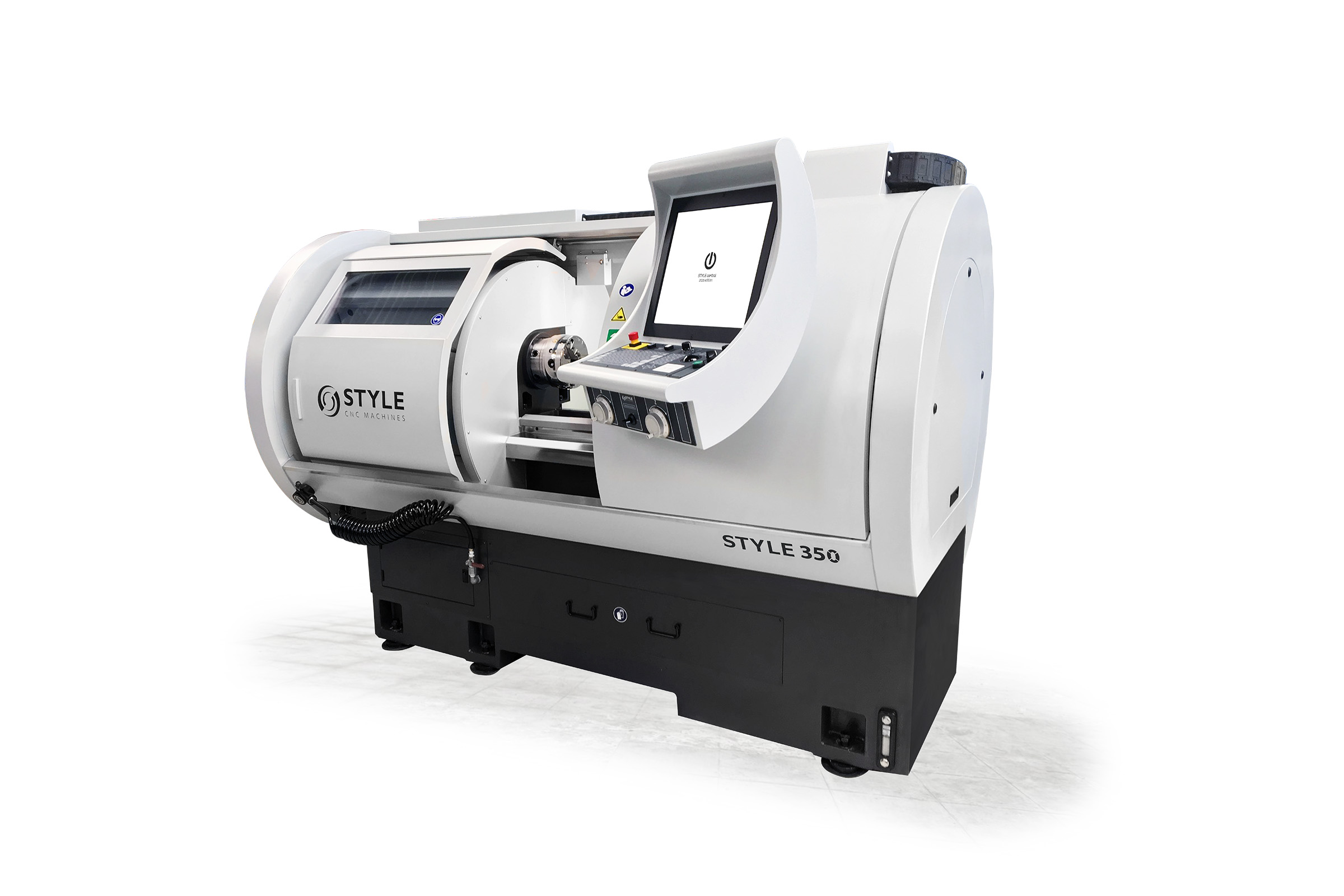

STYLE 350 CNC lathe, for small jobs with great performance
STYLE 350 CNC lathe in brief:
- Extremely stable cast iron machine frame
- Quill 54 mm
- High torque (gearbox in combination with heavy main engine)
- Distance between the centers 850 mm
- Weight 2000 kg
Very accurate machining with the STYLE 350 CNC lathe
One of the smaller lathes from the STYLE lathes series is also equipped with the unique STYLE control. The lathe is equipped with the latest STYLE control, which speeds up the machining process of your products considerably and also makes high-quality products. Naturally you will bring a very stable CNC lathe to your machine park with this machine. Due to the flatness of the bed width (305 mm) and the center, you can assume that this machine is very stable, so that your products can be accurately produced.

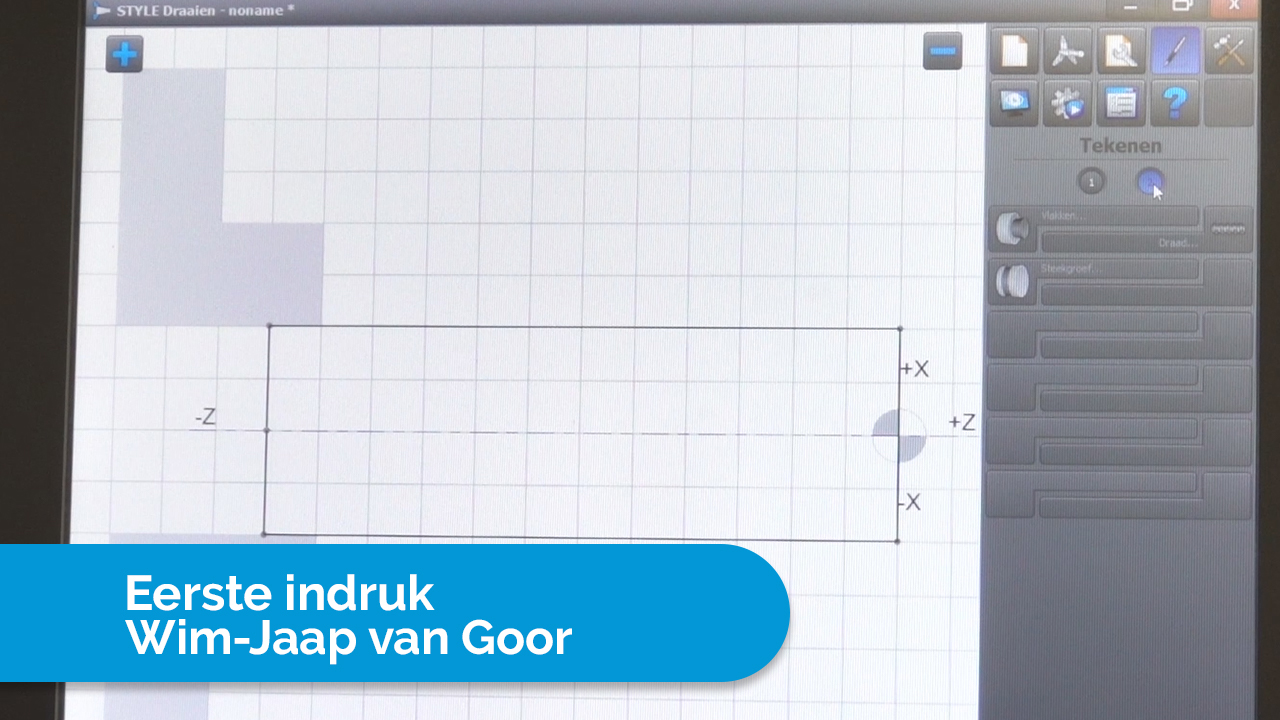

Programming from the office
You can place all your programs that you want to run on a USB stick, but it is also possible to place the computer of the lathe in your network. This allows you to program your programs outside the machine.
| Maschine | STYLE 350 | |
|---|---|---|
| Drehdurchmesser über Bett | mm | 380 |
| Drehdurchmesser über Schlitten | mm | 190 |
| Abstand zwischen den Spitzen | mm | 850 |
| Bettbreite | mm | 305 |
| Max. Gewicht zwischen den Spitzen | kg | 300 |
| Hauptspindel | STYLE 350 | |
|---|---|---|
| Max. Motorleistung (S6) | kW | 5.5 / 7.5 / 11 |
| Spindelbohrung | ø mm | 54 |
| Max. Spindeldrehzahl | rpm | 3000 / 4000 |
| Spindelnase | D1-6 |
| X- und Z-Achse | STYLE 350 | |
|---|---|---|
| Eilgang | m/min | 8 |
| Vorschub | m/min | 2 |
| Reitstock | STYLE 350 | |
|---|---|---|
| Pinole | ø mm | 54 |
| Pinolenhub | mm | 100 |
| Pinolengröße | MK | 4 |
| Allgemein | STYLE 350 | |
|---|---|---|
| Gewicht | kg | 2000 |
| Maschinenabmessungen (L/B/H) | m | 2.5 x 1.8 x 1.8 |
| Optionen | STYLE 350 |
|---|---|
| Automatischer Späneförderer | Option |
| Automatischer Revolver | Option |
| Positionierte C-Achse | – |
| Automatischer Revolver mit angetriebenen Werkzeugen | – |
